SH-F ,Brand: Dongya : SHUNT

รหัสสินค้า : SH-F

Use:

The interchangeable shunts are used to multiply the measuring range of current of measuring instruments.

Application:

For Telecommunications equipment, Electric cars, Aerospace, Charging station, Electroplating Power Equipment, Instrument and meter, Dc power system, etc.

Main technical data:

1. Rated voltage drop range: 1A-50A 10mV~800mV；51A-2500A 10mV~300mV

2. Ambient condition-25～+40℃; Relative humidity≤80% (35℃)

3. Temperature rise: Put in rated current for 2hr, after the temperature rising steady test it: When the rated current less than 100A, the temperature rise should be no more than 80K; When the rated current more than 100A, the temperature rise should be no more than 120K.

4. Over load performance: 120% of rated current for 2hours.

5. Thermoelectric potential influence: no more than 50% of the index level.

Specification

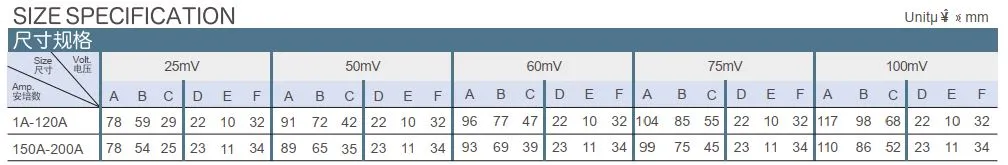

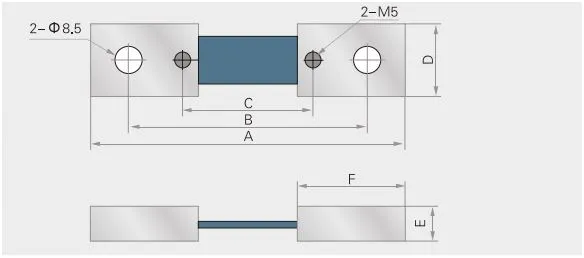

Dimensions

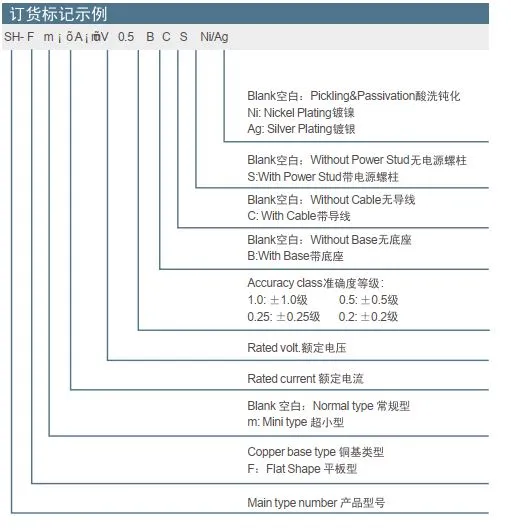

Order Code
